Big Bubble Circulation Pump

Engineered for Results

Visual Circulation™

Multi-acre ripple fields confirm performance immediately

Natural Sunlight Management

Naturally suppress algae growth and reduce evaporation

Stratification Preserved

Operates without disturbing natural thermal layers

Low Maintenance

Clog-free with no moving parts or electricity in the water

Measurable Oxygen Exchange

Uniform wide-area dissolved oxygen increases

Selective Bottom-Water Recirculation

Cold bottom-water circulated horizontally across the surface

Energy Efficient

Massive movement with negligible backpressure

Seamless Fit

Integrates with existing airlines and compressors

Ecosystem Outcomes

Reduce algae, weeds, odors, and insects
Improve surface clarity and overall “feel”
Create a large ice-free zone in freezing weather

Improve ecosystem for fish and wildlife
Improve condition of shorelines and docks
Increase off-gassing through the surface

See All Applications

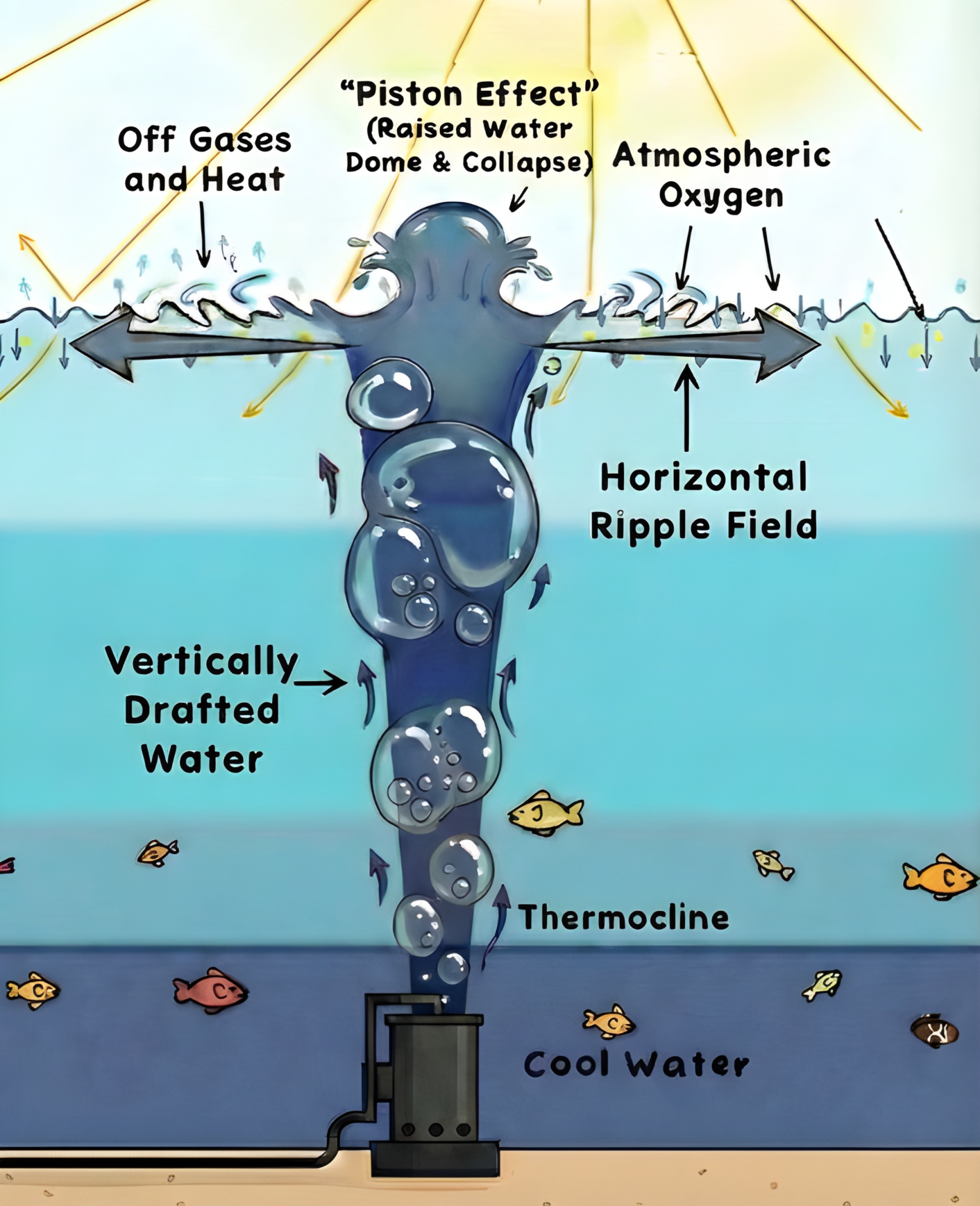

How the Big Bubble Circulation Pump Works

How It Works

1. Controlled Updraft

Large sequential bubbles rise from depth carrying colder oxygen-depleted water upward in a narrow controlled column.

2. The Piston Effect

As the upwelled water reaches the surface, it creates a large surface lift which converts vertical displacement into horizontal movement.

3. Visible Ripples

A deep, expanding ripple field spreads outward across multiple acres continuously renewing the surface, enhancing atmospheric oxygen exchange, and naturally managing sunlight.

See Field Validation Study

Designed to Integrate

The Big Bubble Circulation Pump uses the same air infrastructure as traditional diffuser-based systems. Run it standalone or enhance your existing aeration strategy with wide-area surface movement for complete coverage.

Wide-area surface exchange, horizontal circulation, and broad distribution of oxygen that eliminates stagnant zones.

Traditional Bubble Diffusers

Targeted destratification, deep-water diffused oxygenation, and localized improvement of bottom conditions.

Even Better Combined Together

Balance vertical and horizontal mixing to form comprehensive whole-lake aeration and tailor oxygenation strategies.

Different Tools for Different Jobs

	Traditional Bubble Diffusers	Traditional Surface Aerators	Big Bubble Circulation Pump
Aeration Method	Dissolved Bubbles	Atmospheric Absorption	Atmospheric Absorption
Deep-Water Oxygenation	✔
Destratification	✔
Wide-Area Horizontal Circulation		✔	✔
In-Water Electric		✔
Selective Bottom Water Recirculation			✔
3-5 Acre Coverage	~3-4 Units	1 Unit	1 Unit
Running Amps (per unit)	2.5-5 Amps (120 V)	18 Amps (240 V)	2.5-5 Amps (120 V)
Estimated Cost (per unit, US avg)	~ $1 - $2.50 / day	> $15 / day	~ $1 - $2.50 / day

Patented and Proven

Protected under U.S. Patent US-11267735-B1.

Validated in independently certified 2025 field studies using multimeters, thermal drone imagery and 3D sonar analysis. Results confirmed broad surface circulation and oxygenation without destratification.

Read the 2025 Field Validation Study
